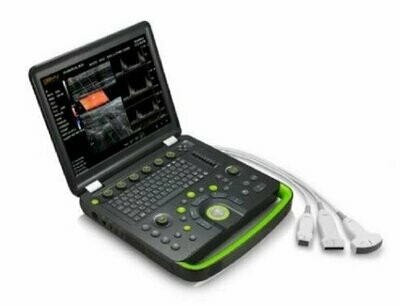

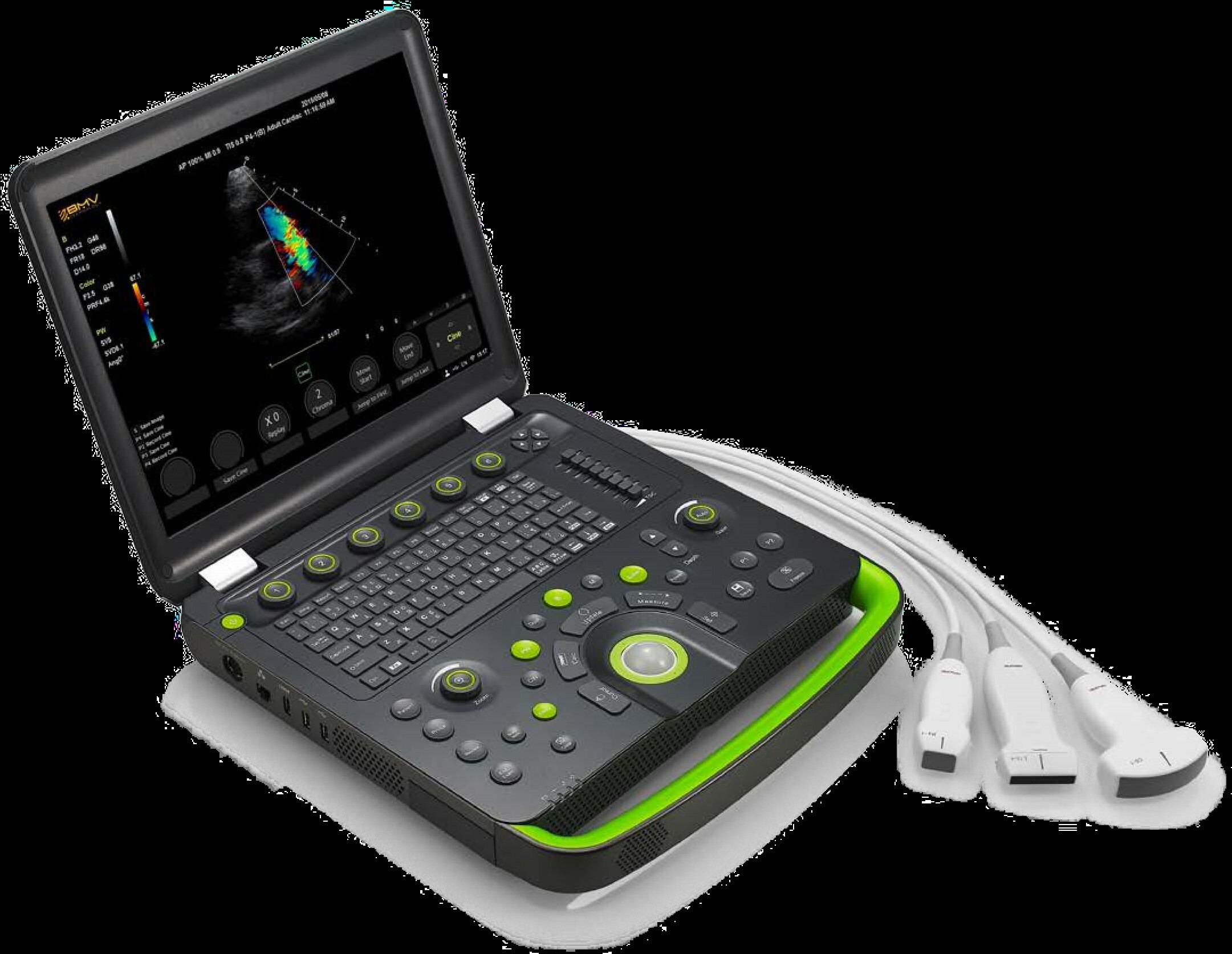

BCU60 4D Veterinary Color Doppler Ultrasound
Product Description
The BCU-60 Vet color doppler ultrasound system is a full function hand-carried system. A portable, simple to use, and durable system with best-in-class image quality, offers features and image quality reserved for cart-based systems.
Smart Body
：Slim and light, system weights only 4.9kg with battery

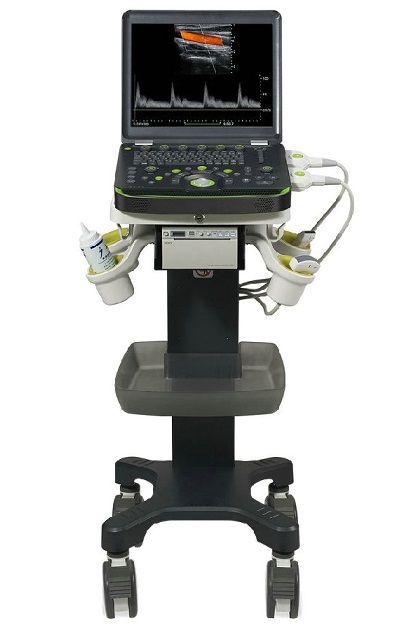

Trolley:
Completely adjustable, with large wheels, for smooth and safe transportation.

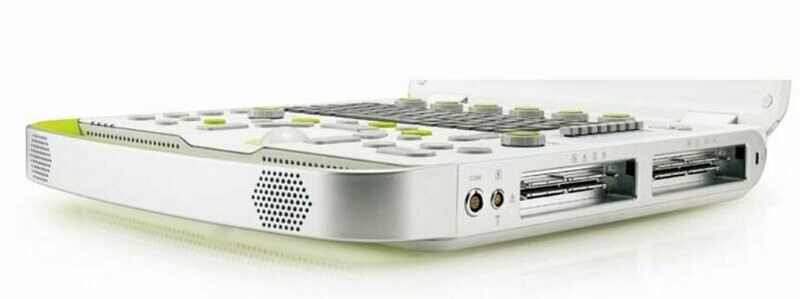

Dual transducer connectors:
With two transducer ports, we have dramatically reduced the risk of connector damage.
Travel case:
A dedicated customized travel case either for roll along or as a rucksack.

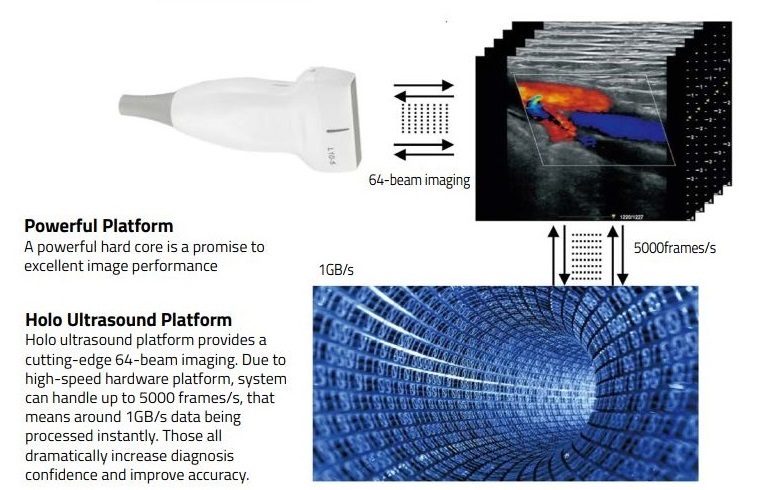

Powerful Platform:
A powerful hardcore is a promise to excellent image performance
Holo Ultrasound Platform:
Holo ultrasound platform provides a cutting-edge 64-beam imaging. Due to high-speed hardware platform, system can handle up to 5000 frames/s, that means around 1GB/s data being processed instantly. Those all dramatically increase diagnosis confidence and improve accuracy.
Holo PW:
3 sampling gates under real-time imaging. Allow the user to move each gate pre and post-processing. An essential tool in accurately evaluating plaque. Used before, at & after vascular pathologic change position with synchronized one heart beat measurement.
Ultra-Wide Steer Angle:
A precise tool to match vessel angle & blood flow. Up to 30° maximum angle, quick angle or simple 1 steps, offers complete user control.
Auto Doppler:
The BMV BCU-60 Vet has the patented ability to automatically locate blood vessels. BCU-60 Vet automatically adjusts color box position, steer angle, PW gate size position, PW steer angle and correction angle. With Auto Doppler, confidence and time saving are a standard feature.
Time-spatial Speckle Suppression Imaging technology:
Using BMV Time-spatial Speckle Suppression Imaging, the BCU-60 Vet reduces speckle precisely, without loss of information and improves image quality.
Durable and Stable:
The BCU-60 Vet is always ready to respond to your requirements, uncompromising hard boot-time under 23 seconds, sleep reboot under 5 seconds.
Durable:
Made of magnesium-aluminum alloy, the BCU-60 Vet is designed to withstand today’s harsh environments to complete the highest quality examination.

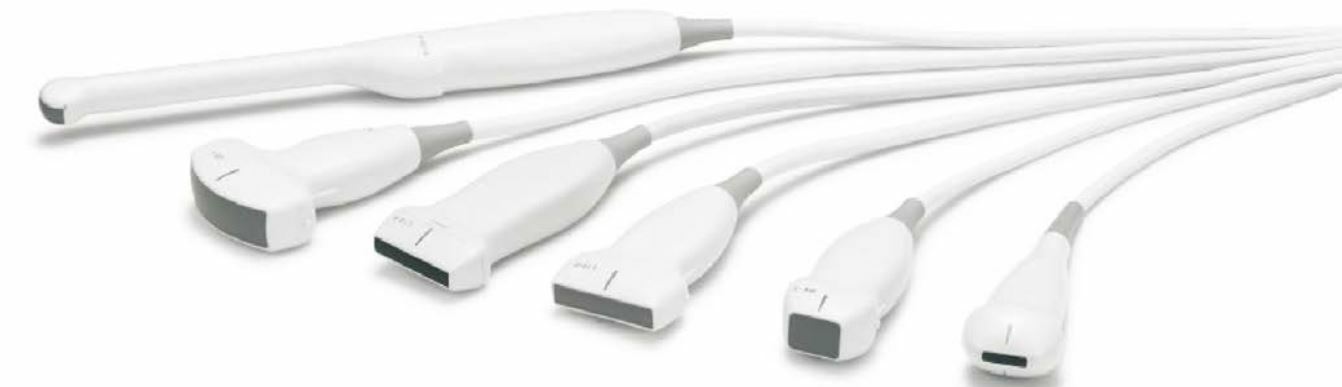

Broad Set of Transducers:
Including our 20 MHz linear probe, the BCU-60 Vet system supports all examinations. Additional, BMV, offers the specific central line mark on the probe to assist any out-plane biopsy.
Technical Specification:
| Application | Abdomen, Reproduction, Gynecology, Cardiology, Small parts, Urology, Vascular, Pediatrics, Emergency Medicine, Anesthesia |
| Imaging modes | B Mode, Harmonic Imaging, M Mode, Color Doppler Imaging, Directional Power Doppler Imaging, PW Doppler, CW Doppler, TDI, 3D/4D, Anatomic M, Holo PW Imaging |
| Transducer type | Convex Array, Linear Array, Phased Array |
| Transducer frequency | 2-15Mhz |
| Transducer element | 128 |
| Transducer connector | 2 active transducer connectors |
| Scanning depth | Up to 351mm |
| Language | Software: English, Chinese, Spanish and more(ODM support!) |
| Dimension | 366x352x65mm |
| Weight | 4.9kgs (Include battery) |
| Monitor | 15 inch LED |
| Input and output |
|
Standard Packing List:
1. BCU60 veterinary ultrasound main unit with the special customized system
2 Standard Power Supply Cord
3. Print Control Line
4. Cable Holder
5. Lithium-ion Battery
Optionals:
Convex Array transducer C5-1
Linear transducer L10-5
High-frequency Linear Array transducer L15-4
High-frequency Linear Array transducer L20-10
Phased Array transducer P4-1
Endocavity transducer EV10-4
Microconvex transducer C8-3
CW (only with main unit)
HDMI to S-Video module
Spare set of batteries
Travelling Case
Warranty:
Main unit:2 Years
Probes:1 Year
Free Lifetime upgrade to new versions.
