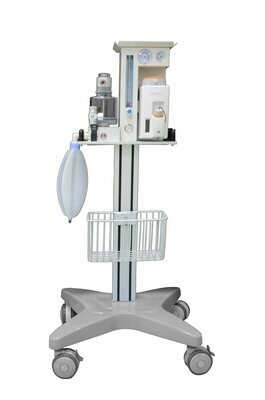

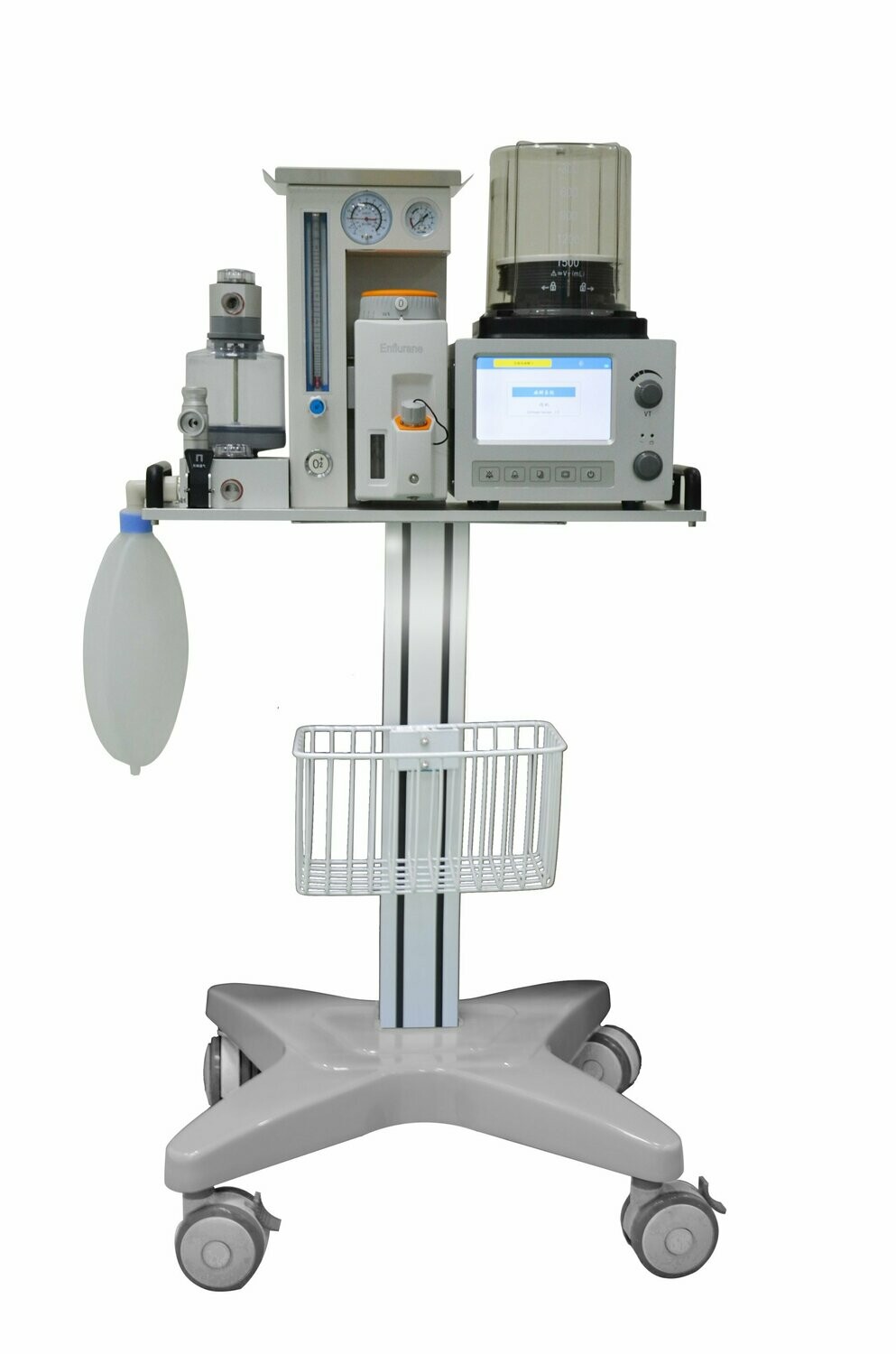

DM6B Veterinary Anesthesia System

Application

Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good reputation from clients around the world.

DM6B model designed for safe, simple and controllable inhalation anesthesia for animals. The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.

Main Features

• 10.4” TFT LCD touch screen displays the Ventilation parameters, Alarming information and Waveform.
• Electronic flow meter, instantly know the fresh gas flow to your patient.
• Integration breathing circuit design, ensure easy operating and keep tidy.
• Multiple working modes such as volume control and pressure limit, adapt to wide range animal.
• Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
• Multiple parameters monitoring interface, make every parameter clear, let users know the animal conditions in all aspects;
• Real time pressure-time, flow-time loop graphics and high precision ETCO2, O2 concentration detection function included.
• Wide use range including animals within 200KG.

Trust Point

• 4 casters with 2 individual brakes.
• Precision in an anesthesia ventilator with multiple ventilation modes: IPPV, A/C, PCV, SIMV, SIGH and MANUAL .
• Compact interface and 10.4" TFT LCD touch screen give you better operating experience.
• Flexible configurations able to customize your requirements.
• International standard and advanced technology suitable for wide range use.
• Over 5,000 units are installed in more than 200 countries.
• Designed and manufactured with over 25 years of experience in veterinary field

Safety

• Three level alarm system, visual and sound alarm information.
• Intelligent dual system controls ensure safe use in clinics.
• With lots of alarm, reminder and protection functions.
• Advanced power management control technology.
• Built-in backup battery provide the emergency power supply up to 2-3 hours for the unit.

Advantage

• 10.4" touch screen displays information area, alarm area, monitoring area, and setting area.
• Electronic flowmeter, instantly know the fresh gas flow to animals.
• Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.

Technical Specifications

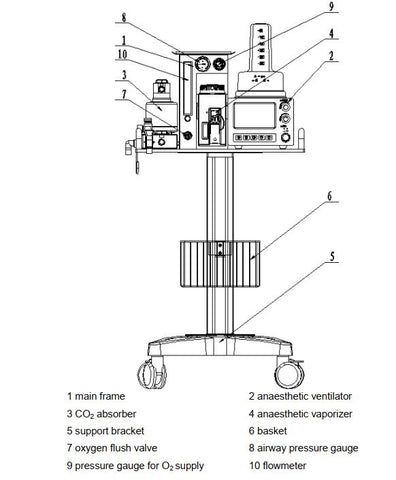

Standard Configurations

DM6B anesthesia system includes the following monitoring devices ,alarm devices and
protection devices：

• monitoring for exhaling gas volume;
• monitoring for airway pressure;
• airway pressure limit;
• continuous pressure alarm for ventilation system;
• alarm for airway pressure high;
• alarm for MV high;
• apnea alarm;
• alarm for ventilation system integrity;
• oxygen fault alarm;
• oxygen fault protection;
• alarm for power supply fault;
• O2 monitor;
• anaesthetic ventilator;
• anaesthetic breathing system

Warranty: 14 Months
