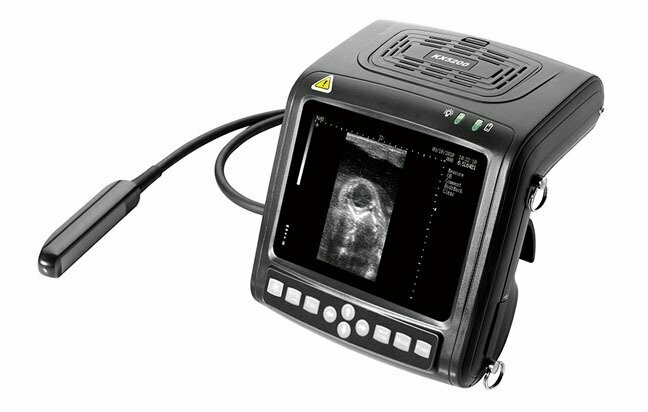

KX5200V is a full digital B mode ultrasound scanner with extensive veterinary clinical applications. It gives an excellent image quality with high resolution and high penetration. It is lightweight and can conveniently be worn on the wrist or hung on the neck for hands free use.
Main Features:
Wrist design, multiple patents in one, smart and light, convenient for carrying, easier for examining patients at home.
5.7" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
Menu operation，Language: Chinese/English.
100 frames permanent storage, 256 frames cine loop.
Eight pseudo colors (incl.B/W).
High speed USB port support high-capacity U disk, and support the color laser printer print out all kinds of images and reports which make the output of diagnosis more convenient and simple.
Dual-mode TV output:ＰＡＬ/ＮＴＳＣ, connecting to video recorder and ultrasonic working station.
Optional mouse to operate easier.
Freeze or unfreeze image by shutter release.
Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, Image freeze/unfreeze, gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, frame correlation function, adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc
Measurements:
Normal measurement： distance、 Perimeter, area (tracing method, ellipse method), volume, etc.
B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks
Obstetric report
Character Tags: name, age, hospital name, and automatically display the date, time, probe type, probe frequency, frame related to the number of the focus number, gain, dynamic range, etc.
Power Supply: AC 100-240V~, 50-60Hz
Consumption: ≤ 40VA
PAL-NTSC switchable
STANDARD CONFIGURATION
KX5200V main unit
5.7Mhz high resolution non-interlaced LCD display
1 probe connector
6.5MHz linear veterinary rectal probe (for veterinary endorectal)
4 veterinary body marks
Lithium battery
Sunshine cover
Black operation box
Power adapter
Battery charger
Belt
User’s manual
Probe holder
Lock coin
Screen protection film
OPTIONAL PROBES
3.5MHz convex probe (abdomen, GYN, OB, Urology)
3.5MHz convex probe (abdomen, GYN, OB, Urology)
4.0MHz convex rectal probe with handle (endorectal)
5.0MHz micro-convex cardio probe (cardio)
6.5MHz linear veterinary rectal probe with handle(endorectal)
7.5MHz high frequency linear probe (small parts, orthopedics, breast, musculoskeletal)
