KX5600V Veterinary Small Animal Ultrasound Scanner

• Provides good image quality at an affordable price.
• Lightweight at only 10 lbs, including battery and probe. Similar ultrasounds are around 20 lbs.
• Large 10.4" LED screen, with full screen image.

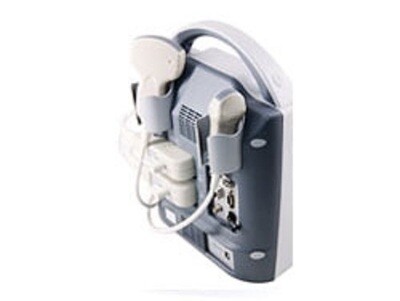

• Two standard probe connectors
• Digital Imaging and Communications in Medicine ( DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.

• Anti-dust and anti-spalsh keyboard is convenient for outside conditions.
• 70mm rectal probe lens and 70mm wide image. Wide image is good for seeing big follicles in large animals.

Main Configuration

• Main unit
• 6.5MHz micro-convex probe
• Power supply adaptor
• Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
• Reticle
• Two probe sockets
• DICOM 3.0

• 4.0MHz Convex Rectal probe
• 3.5MHz Linear Probe for eye muscle
• 3.5MHz Convex Probe
• 7.5MHz Linear Probe
• 6.5MHz rectal linear probe
• Battery charger
• Trolley
• Video printer（UP-897MD）
• Ethernet Switch
