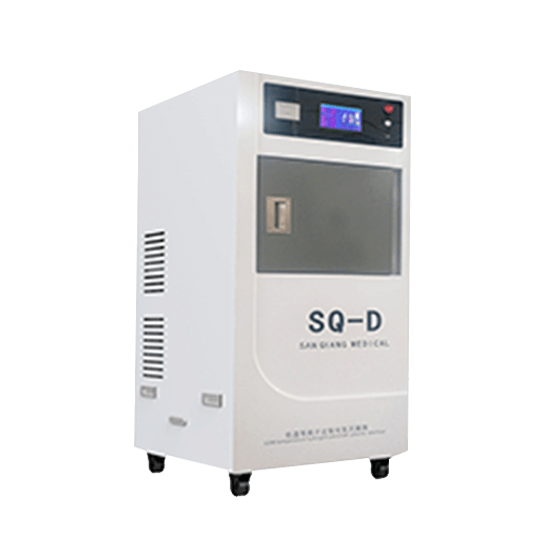

H2O2 Plasma sterilisers feature advanced technology for safe low-temperature sterilisation that uses hydrogen peroxide as sterilization agent with plasma technology inside chamber .The plasma systems are used to sterilize various medical instruments such as surgical endoscope,metal tools , plastic and electronic device and other accessories. Even long, narrow lumens can be effectively sterilised.
Features
Easily installed and relocate
No special facilities required (Water / vent)
Rapid cycle time
User friendly chamber design
Easy to clean and maintain
Corrosion & Acid proof housing
Optimise utilisation of instrument inventory
Processes a wide range of surgical instrument
Compatible with moisture / heat-sensitive materials
Environment friendly design
No aeration after sterilization
Easy to use sterilisation agent cassette
High vacuum pump for deep penetratio n
Thermal printer for complete cycle information
USB data export
Caster wheels for easy relocation
Specifications
Models
SQ-DS60
SQ-D100
SQ-D130
Chamber Volume
60 Liters
100 Liters
130 Liters
Construction
5052 Aluminium
Processing Temperature
Below 55°C
Control System
Siemens PLC
Models
SQ-D60
SQ-D100
SQ-D130
Chamber Volume
60 Liters
100 Liters
130 Liters
Construction
5052 Aluminium
Processing Temperature
Below 55°C
Control System
Siemens PLC
Display
7” Touch Screen
Printer
Thermal Printer
Touch Screen Functions
Phase Temperature Date and time Cycle Selected Alert message
Data Storage
Memory Card
Total Cycle Time
Short cycle 30 minutes , long cycle 50 minutes
Noise
< 60 db
Door
One
Alarm
Door Lock Dosing failure Low / High Temp. range Vacuum & Pressure
Power Supply
220 V, Single Phase 50 Hz
Mobility
4 Wheels
Standards
NP EN ISO 9001:2000, EN ISO 13485:2016 EN ISO 14937, EN 61010-2-040, EN 61010-2-042
