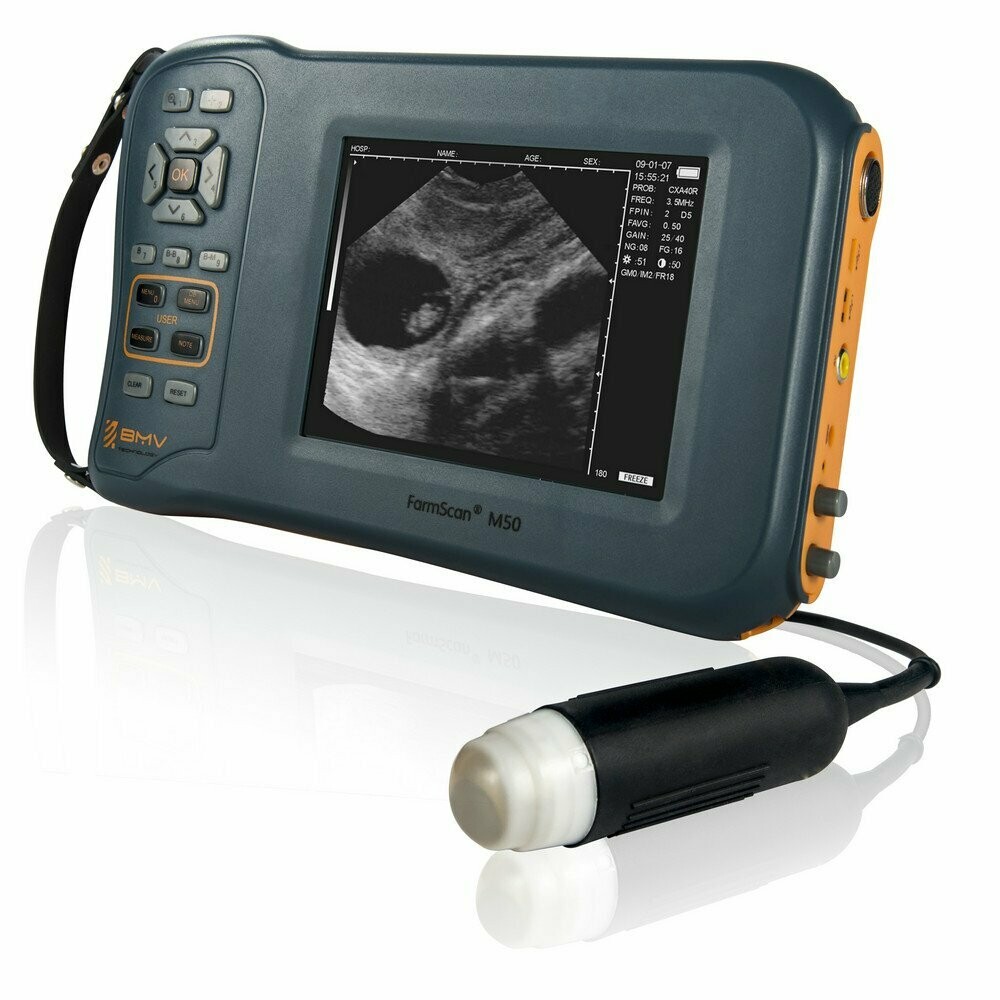

M50 Professional mechanical sector ultrasound

• Professional mechanical sector ultrasound system. Excellent imaging quality and ergonomic design for fast and reliable detection;
• 5.8 inch WVGA LCD monitor, wide viewing angle;
• Support USB ultrasound workstation to transfer images and video;
• Support leather sheath, designed to beresistant to extremely harsh farm conditions;
• Software & Report for reproductive system,and measurement for distance, area, circumference, volume, angel, heart rate;
• A portable ultrasound scanner for fast and easy detection of pregnancy in small and large livestock.
• M50 is a light ultrasound scanner, compact, user friendly, especially designed for small and large farm of sows, Ewes, goats, bovine dairy and bovine beef scanning. Excellent imaging quality and ergonomic design make it fast and reliable detection of pregnancy from 19th day in sows , 28th day on cows, 25th in sheep and goats pregnancy diagnosis, and have exported in many countries all over the world and cooperates with larger farms many countries.

Benefit on pig farm:

• M50 can check whether the pig is pregnant or not as well as 18 days after mating, avoiding the waste of non-pregnanet feed. At a rough estimate, this action can directly save about 2000USD feed cost for farm for every 100 head of the sow.
• More indirect economic benefits
• Increase the litter size;
• Enhance productivity ;
• Find disease and epidemic situation timely.

Features

• Only weight 0.48 kg;
• Excellent imaging quality and ergonomic design for fast and reliable detection
• 5.8 inch WVGA LCD monitor, wide viewing angle, LCD monitor can turn off when use I-Scan® Video Goggle
• Support USB 2.0 for ultrasound station to transfer images and video to your computer, 450~550-frame cine loop and 128 images insider;
• 5.5~6.5 hours Li-ion battery for operating;
• Support leather sheath, designed to be resistant to extremely harsh farm conditions;
• Software & Report for reproductive system, as well as measurement for distance, area, circumference, volume, angel, heart rate;
• Portability by a shoulder belt giving you total freedom of movements
• Support leather sheath(easy-clean by running water), designed to be resistant to extremely harsh farm conditions;
• I-Scan® video glasses eases your job and gets you focused (optional)

Technical Specification

Display	5.8 inches Color Transflective TFT
Imaging modes	B, B/B, B/M, M, 4B
Probe Frenquency	2.5Mhz, 3.5Mhz, 5.0Mhz, adjustable
Display Depth	190mm
Image process	image smoothen, histogram, preudo color
Size	40*250*120mm
Temperature range	-10°C to 40 °C/14 °F to 104°F
Probes	Mechanical Sector selectable
Battery	≥ 6 hours per battery
Image magnification	8 levels zoom in
Image storage	≥ 150
Image control	Brightness, contrast ratio
Weight	Only 0.48kg with battery and TFT LCD

Standard Packing List:

Options:
Model Commodity/Descriptions Application
FB2800 Extra battery
Hood02 Hood sheath using hood sheath sunlight readable
MS4P Sector transducer
(3.0/3.5/4.0/5.0MHz) Pig, Sheep, Goat animal scanning transabdominal reproductive
CW126100 Car charger
MANGO-BMV-12AD AC Adapter
BC6 Battery Charger


Warranty:
Main unit:2 Years
Probes:1 Year
Free Lifetime upgrade to new versions.
