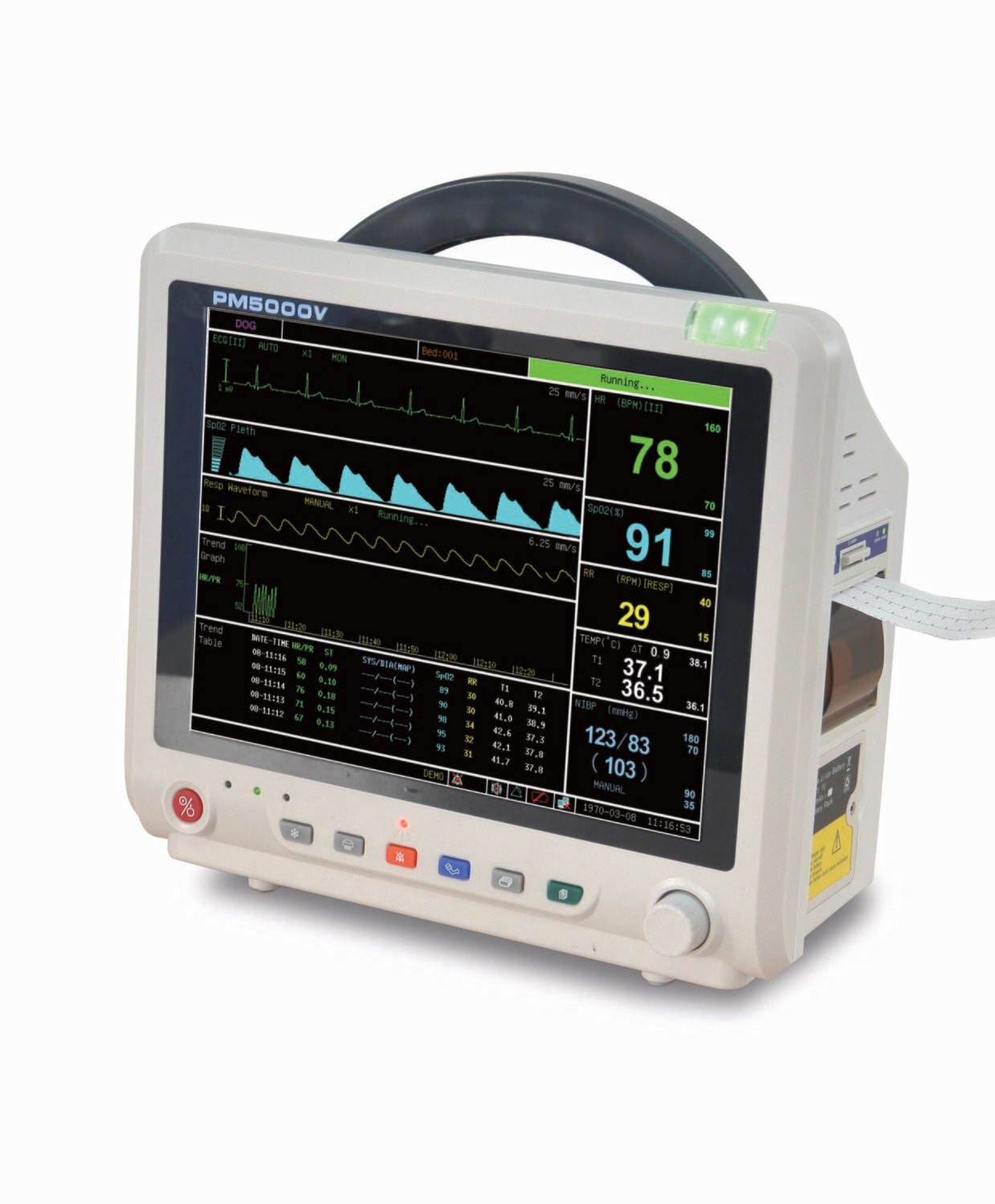

PM5000VCSP 12" Veterinary Multi-parameter Monitor with ECG RESP SpO2 NIBP TEMP PR ETCO2 (Sidestream) Printer

The PM5000V is a multi-parameter veterinary monitor with 12.1 inches high resolution LCD display. It is intended to be used in veterinary clinics and hospitals to measure animals’ SpO2, Pulse rate, Non-invasive blood pressure, Temperature,5-lead/3-lead electrocardiography (ECG), Respiration rate and Capnography (ETCO2). It has an optional parameter: invasive blood pressure (IBP).

Main Features:

• 12.1' coloured and bright, high definition (800 x 600) TFT LCD screen;
• Parameters: SpO2, ECG, Heart Rate,NIBP, TEMP*2, RESP, Sidestream ETCO2 (Optional: IBP);
• Suitable for cats, dogs, horses and other animals;
• 72 hours graphic and tabular trends of all parameters;
• 32 seconds full-disclosure waveform review ;
• 500 NIBP and SpO2 measurement data can be stored and recalled;
• Dual Batteries for long time continuous operation
• 100M Base-T Ethernet Interface, Support to connect to IPMS8000 Patient Management System;
• Special designed SpO2 technology with adjustable emitting light and a wide range measurement for veterinary
• Special designed ECG technology with high input impedance to suit for different size of veterinaries
• Special designed NIBP technology with different size of NIBP cuffs for veterinaries
• Sidestream technology accommodates intubated and non-intubated animals
• Unique Designed LOGO for veterinary use only
• Ergonomically designed handle to fit your hand comfortably
• Can link with IPMS8000 intelligent patient monitor system
• Multi-language: English, Chinese, French, Spanish, Germany

Standard Package:

1. PM5000V main unit(ECG+NIBP+SpO2+RESP+TEMP+PR)
2. Veterinary SpO2 sensor (Y type Clip)
3. 5-lead ECG cable
4. 5 ECG Clips
5. NIBP cuffs for Veterinary(Cat,Dog, Horse)
6. NIBP Extension Tube
7. Temp Rectal Probe
8. Sidestream ETCO2 Sensor
9. Nasal Sampling Line
10. Gas Sampling Line
11. Gas Dryer Line
12. T-fitting Tube
13. Sidestream Adapter
14. Lithium Battery
15. Printer+Roll Paper
16. Power cord
17. User Manual

Optional Accessories:

• Central Monitoring Software
• Mobile Trolley
• IBP

Warranty:

Main unit: 2 years

Accessories: 6 months
