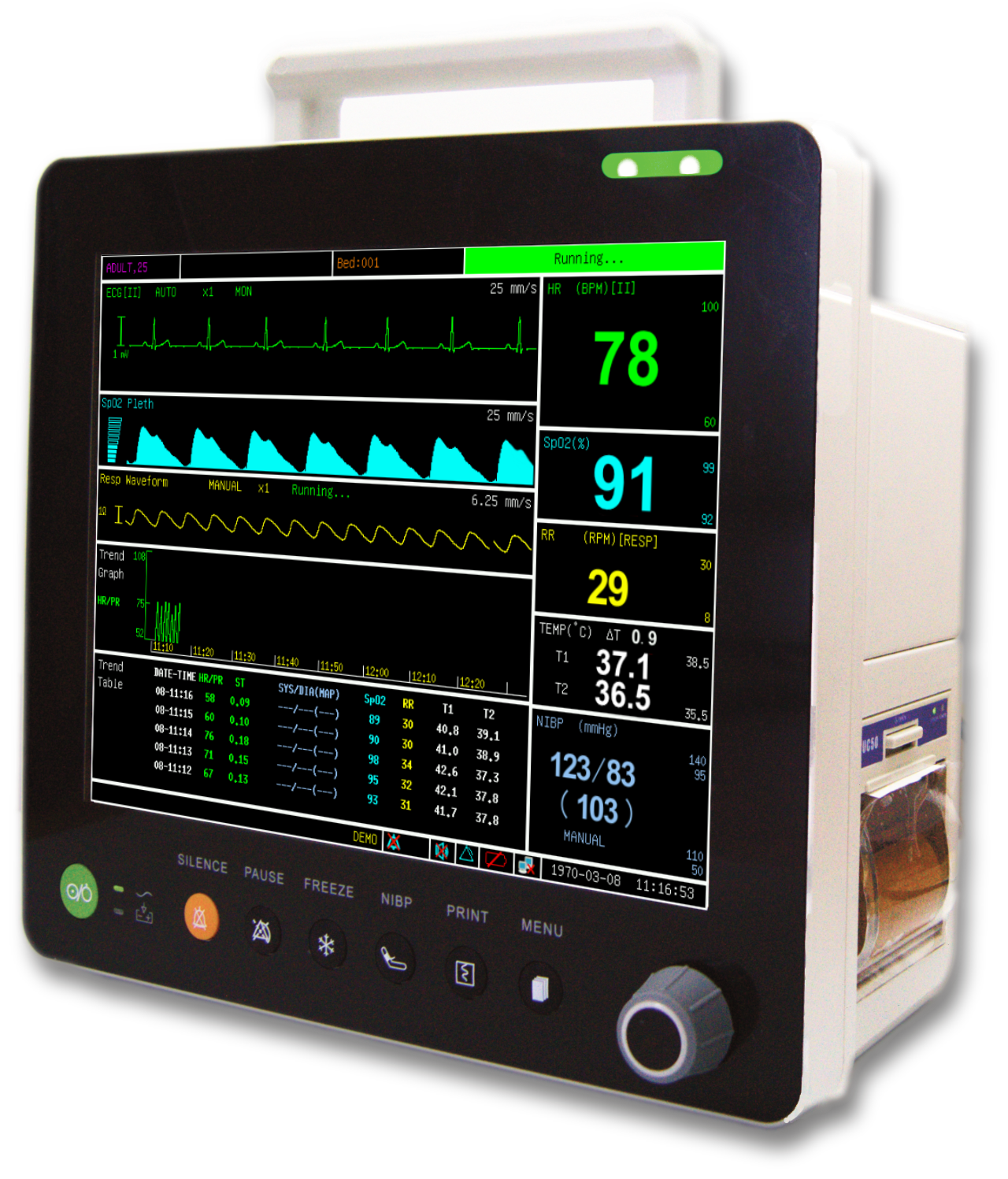

PM6000 12" Multi-parameters Monitor with ECG RESP SpO2 NIBP TEMP PR

Name: PM6000 12" Multi-parameters Monitor with ECG RESP SpO2 NIBP TEMP PR
SKU: PM6000
Price: 1539.0 AUD
Availability: InStock

Store / Human / Monitoring / Multi-parameter Monitor

AU$1,539.00

In stock

Product Details

The PM6000 patient monitor is the leading choice in multi-parameter monitoring. With its large, easy to read display and intuitive design. The standard parameters includes 5/3 leads electrocardiography(ECG), non-invasive blood pressure(NIBP),
pulse oximetry (SpO2), Respiration Rate(RR), temperature(TEMP). Optional para-meters includes ETCO2, 2 invasive blood pressure, and an integrated printer.

Main Features:

12.1' coloured and bright, high definition (800 x 600) TFT LCD screen;
Parameters: SpO2, ECG, Heart Rate,NIBP, TEMP*2, RESP (Optional: Sidestream ETCO2, IBP);
Suitable for adult, pediatric and neonatal patients;
72 hours graphic and tabular trends of all parameters;
32 seconds full-disclosure waveform review ;
500 NIBP and SpO2 measurement data can be stored and recalled;
Built-in large capacity( 4400mAh ) rechargeable Lithium battery(Optional Double Batterys,Up to 8800mAh,Support for up to more 10 hours of work time)
100M Base-T Ethernet Interface, Support to connect to IPMS8000 Patient Management System;
Sidestream technology accommodates intubated and non-intubated patients
Ergonomically designed handle to fit your hand comfortably
Accessory box convenient to carry and save your space
Can link with IPMS8000 intelligent patient monitor system
Multi-language: English, Chinese, French, Spanish, Germany

Standard Package:

PM6000 main unit(ECG+NIBP+SpO2+RESP+TEMP+PR)
Adult SpO2 sensor
5-lead ECG cable
5 ECG Clips
NIBP cuff for Adult
NIBP Extension Tube
Temp Rectal Probe
Lithium Battery
Power cord
User Manual

Optional Accessories:

Central Monitoring Software
ETCO2 Sensor and Accessories
Printer
Mobile Trolley
IBP

Technical Specification
Enclosure
Weight			3.75kg(8.27lbs)
Dimensions			32.4cm × 32.4cm × 18.3cm
Display			12.1-inch diagonal high-resolution TFT (Thin Film Transistor) Active Matrix LCD
Alarms
Categories			Patient status and system status
Notification			Audible and visual
Setting			Full storage, low battery and sensor off
Range			Pulse rate (30-350bpm), SpO2 (0-100%), NIBP (0-300mmHg), RESP (5-150rpm), TEMP (24.5-45.5℃)
Alarm volume level			45dBA to 85 dBA at 1 meter distance (adjustable)
Range, Accuracy and Resolution
Range Type			Range Values
Measurement Ranges
SpO2 measuring range			0-100%
Pulse rate range			30-350bpm
NIBP measuring range			Systolic:40 to 270 mmHg Mean Arterial:30 to 220 mmHg Diastolic:20 to 200 mmHg
RESP measureing range			0-150rpm
TEMP measureing range			0-50℃
Measurement Accuracy
SpO2 measuring accuracy			70-100% (±2%), <70% undefined
Pulse rate measuring accuracy			±2bpm/±2% take maximum
ETCO2 measuring accuracy			0~40mmHg ±2mmHg, 41~150mmHg ±10%
TEMP measuring accuracy			±0.2℃
RESP measuring accuracy			±1rpm
Resolution
Display			800 X 600 pixels
SpO2			1%
ETCO2			0.1mmHg
TEMP			0.1℃
RESP			1rpm
Pulse rate			1bpm
Electrical
AC power requirement			100-240VA, 50/60Hz
Batteries
Types			Lithium-lon Batteries
Operating time			≥4hours
Charge time			≤4hours
Environment
Operating tempearture			0-50℃
Storage temperature			-40-75℃
Operating humidity			15-95%
Storage humidity			10-95%
Operating altitude			-500-5000m
Standards and Certification
IEC 62366			Medical devices-Application of usability engineering to medical devices
IEC 62304			Medical device-software life cycle processes
MDD 93/42/EEC			European Medical Device Directive
ISO 13485			Medical equipment-Quality management system
EN ISO 14971			Medical devices-Risk management
EN 60601-1			Medical electrical equipment
EN 60601-2			Medical electrical equipment
EN 60601-8			Medical electrical equipment
EN 980			Symbols for use in labeling of medical devices
EN 1041			Information supplied by the manufacture of medical devices
ISO 80601-2-61			Medical electrical equipment-Particular requirements for the basic safety and essential performance of pulse oximeter equipment for medical use
EN ISO 10993-1			Biological evaluation of medical devices
EN ISO 10993-5			Biological evaluation of medical devices
EN ISO 10993-10			Biological evaluation of medical devices
ISO 14155-1			Clinical investigation of medical devices
CE			CONFORMITE EUROPEENNE
SFDA			State Food and Drug Administration

Warranty:

Main unit 2 years

Accessories 6 months
