PM6800VP Veterinary 15" Multi-parameters Monitor with ECG RESP SpO2 NIBP TEMP PR Printer

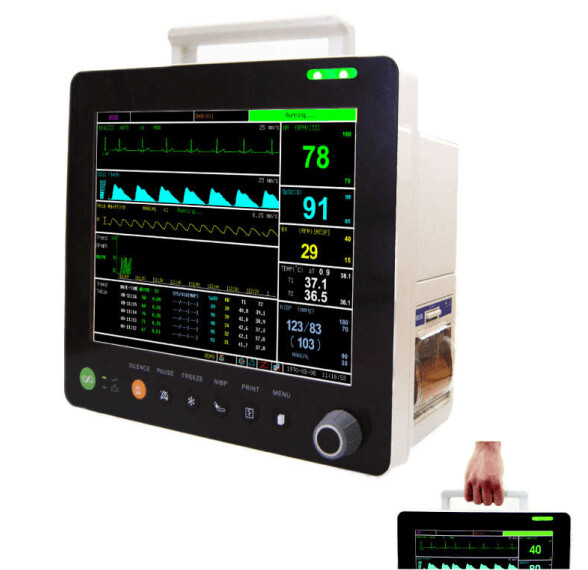

The PM6800V is a multi-parameter veterinary monitor with 15.1 inches high resolution LCD display. It is intended to be used in veterinary clinics and hospitals to measure animals’ SpO2, Pulse rate, Non-invasive blood pressure, Temperature, 5-lead/3-lead electrocardiography (ECG) and Respiration rate. It has two optional parameters capnography (ETCO2) and Invasive blood pressure (IBP) .

Main Features:

• 15' large, coloured and bright, high definition (800 x 600) TFT LCD screen;
• Parameters: SpO2, ECG, Heart Rate, NIBP, TEMP*2, RESP, (Optional: ETCO2 and 2*IBP);
• Suitable for cat, dog, horse and other animals ;
• 72 hours graphic and tabular trends of all parameters;
• 32 seconds full-disclosure waveform review ;
• 500 NIBP and SpO2 measurement data can be stored and recalled;
• Built-in large capacity( 4400mAh ) rechargeable Lithium battery;
• Equipped with internal printer, Support for 3 channel waveform print ;
• 100MBase-T Ethernet Interface, Support to connect to IPMS8000 Patient Management System;
• Special designed SpO2 technology with adjustable emitting light and a wide range measurement for veterinary
• Special designed ECG technology with high input impedance to suit for different size of veterinaries
• Special designed NIBP technology with different size of NIBP cuffs for veterinaries
• Sidestream technology accommodates intubated and non-intubated animals
• Unique Designed LOGO for veterinary use only
• Equipped with accessory box, convenient to carry and save your space
• The recorder supports the print of 3 channels wave form at the same time
• Ergonomically designed handle to fit your hand comfortably.
• Freeze alarm events, easy to capture alarm information.
• Can link with IPMS8000 intelligent patient monitor system
• Multi-language: English, Chinese, French, Spanish, Germany

Standard Package:

1. PM6800VC main unit (ECG+NIBP+SpO2+RESP+TEMP+PR+ETCO2)
2. Veterinary SpO2 sensor (Y type Clip)
3. 5-lead ECG cable
4. 5 ECG Clips
5. NIBP Cuffs for Veterinary(Cat, Dog, Horse)
6. NIBP Extension Tube
7. Temp Rectal Probe
8. Lithium Battery
9. Power Cord
10. Printer + Roll Paper
11. User Manual

Optional Accessories:

• Central Monitoring Software
• Mobile Trolley
• Mainstream or Sidestream ETCO2 Sensor and Accessories
• Dual IBP

Warranty:

Main unit: 2 years
Accessories: 6 months
