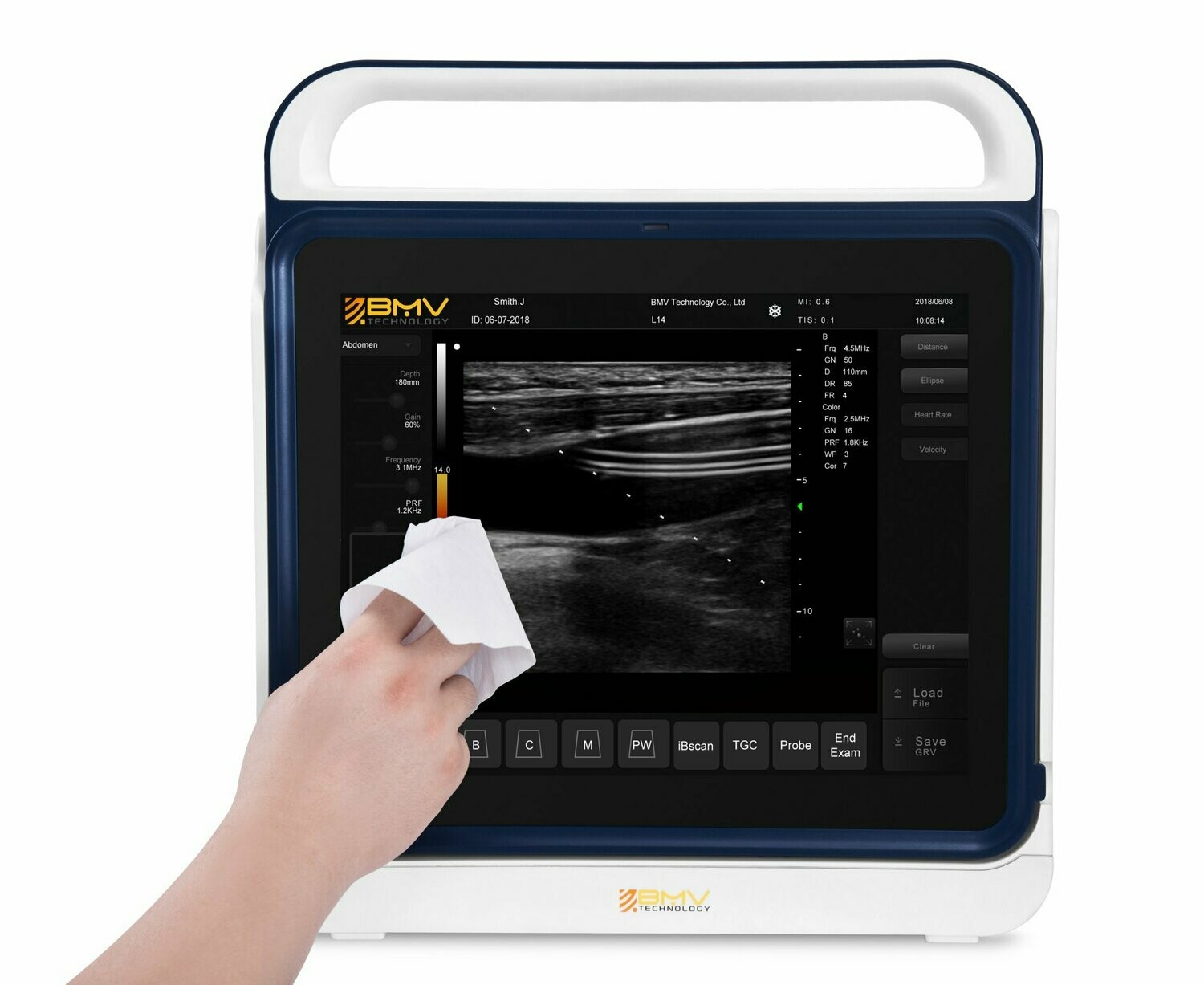

PT60 15" Compact Touchscreen Color Doppler Ultrasound
AU$16,399.00
In stock
Product Details
PT60 Compact Touch Color Doppler Ultrasound
- Focused Applications in POC with Touch Technology
PT60 offers a new level of intuitive operation, innovative productivity tools and powerful processing for empowering. Point of Care (such as PICC, anesthesiology). The result is an all-new level of efficiency and image quality.
Performance and features comparable to that of conventional cart-based systems, PT60 point-of-care color doppler system, is a true simple smart in ultrasound, offers a new level of intuitive operation, innovative productivity tools and powerful processing for empowering point of care including anesthesiology, emergency medicine and general imaging, women's health. The result is an all-new level of efficiency and image quality.
- Focused Applications in POC with Touch Technology
With intuitive design, ease of operation, superior image quality, and a simplified workflow,the PT60 provides diagnostic confidence for focused applications of anesthesia and pain management, critical care, emergency medicine and musculoskeletal bedside examinations.
Imaging Modes
B/C/D triplex mode,Dual live: B/C,B/PW,B/M, Dual-split: B/C, B/M, B/PW
PREMIUM FEATURES
- Simplified workflow with focused diagnosis
- Efficient specialized point-of-care application exams
- Hi-Res 15'' LCD capacitive full touch-screen monitor
- New designed user-friendly software
- Beam steering for better needle visualization
- Ultrasound guided lithotripsy function
- Advanced imaging technology and superior image quality can provide fast and precise scans.
- Compact design to be with you wherever
- Multiple transducers to enable extended diagnosis
- Avanced simple user interface performance
- Digital TGC Preset
- Convenient Handle, Micro Probe Connector
- Built-in 2+ hour battery
- External keyboard (option)
- Mounting systems: wall mount or ergonomic cart(option)
Abundant Accessories
- Trolley
Completely adjustable, with large wheels, for smooth and safe transportation. - Travel case
A dedicated customized travel case either for roll along or as a rucksack. - Three transducer connectors
With three transducer ports, we have dramatically reduced the risk of connector damage. - Needle-guided brackets
Technical Specification
| Ultrasound platform | Based on Windows high‐speed hardware platform, provides a cutting‐edge 64‐beam imaging, can |
| Imaging Modes: | B/C/D triplex mode |
| Gray scale levels: | 256 |
| Transducer Type: | Convex Array, Linear Array, Endocavity Array |
| Transducer frequency: | 2-15Mhz |
| Scanning depth: | up to 351mm |
| Language: | Software: English, |
| System Dimension: | Height: 402 mm Width: 385mm Depth: 53mm |
| Weight: | Around 5.5 kg (Include Battery) |
| Monitor: | 15' high-resolution LCD monitor with tilting to view it freely and comfortably |
| Touchscreen: | Capacitive touch screen,multi‐Point Touch support! |
| Input and Output |
|
Standard configurations:
| Model | Commodity/Descriptions | |
| PT60 | PT60 main unit+Color/PW,64 channels(Enhanced processor) | |
| 15" high definition LCD monitor | ||
| Capacitive touch screen | ||
| LCD Monitor easily be adjusted to the user's preferred height( up to 45°) | ||
| Two special-designed probe holders | ||
| One transducer connector | ||
| Two USB ports+One s-video out port+Shared Service Package | ||
| User defined Ponit-of-care Imaging exam settings | ||
| 64G SSD storage | ||
| Plenty of measurement&calculation software packages | ||
| LY606090 | Rechargeable lithium-ion battery 5000mAh | |
| PV6.5/10/64D-3 | color Doppler Micro-convex array transducer (Abdominal, Arterial, Neonatal, Nerve, Venous,Biopsy Kit avaliable) | |
| MANGO | MANGO-BMV-14AD | |
Options:
| Model | Commodity/Descriptions | Applications |
| C3.5/R60/D-3 | C3.5/R60/D-3 color Doppler convex array transducer | ABD, Renal, ABD-Vascular, Ped-ABD, GYN, OB, Fetal Heart, Urology, Prostate |
| PV6.5/10/64D-3 | PV6.5/10/64D-3 color Doppler Micro-convex array transducer | Abdominal, Arterial, Neonatal, Nerve, Venous,Biopsy Kit avaliable |
| HL10.0/40-64D-3 | HL10.0/40-64D-3 color Doppler Linear probe | Vascular,Carotid,Thyroid,Breast,Testicle,SmEye,MSK, ABD,P-Arterial,Biopsy Kit avaliable |
| HL10.0/25/64D-3 | HL10.0/25/64D-3 High Frequency color Doppler Linear probe | Vascular,Carotid,Thyroid,Breast,Testicle,SmEye,MSK, ABD,Depths:26cm ,Biopsy Kit avaliable |
| EC6.5/10/64D-3 | EC6.5/10/64D-3 color Doppler Trans-vaginal probe | 4-10 MHz,Early OB, OB/GYN, Urology,Biopsy Kit avaliable |
| LY606090 | Extra Lithium-ion battery | Extra rechargeable,5000mAh |
| P201 | Abdominal convex puncture | Needle-guided brackets |
| P202 | HF Linear puncture | Needle-guided brackets |
| P203 | Cavity probe puncture | Needle-guided brackets |
| SW126100 | Battery Charger | AC adaptor for Battery |
| MANGO | AC Adapter for systems | MANGO-BMV-14AD |
| P93W-Z | MITSUBISHI P93W-Z Printer | Video Printer |
| HP-M1005 | HP LaserJet M1005 Printer | |
| MT1 | Mobile trolley | Special design for PT series |
| WTC-1 | Transport case | Special design for PT series |
Warranty:
Main unit: 2 Years
Probes: 1 Year
Free Lifetime upgrade to new versions.
