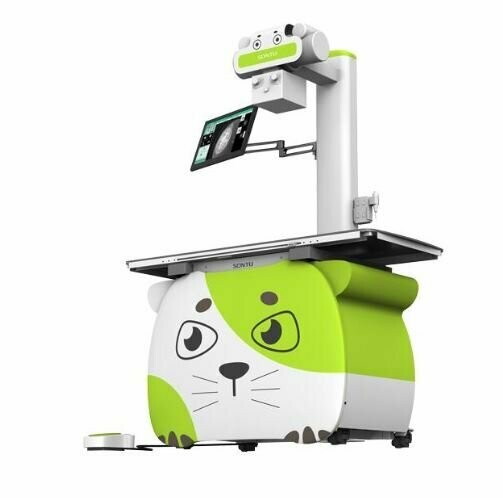

Sontu100 Digital Radiography Remote X-Ray Machine
AU$73,999.00
In stock
Product Details
Main Features
- High-pixel flat panel detector
- Lowest radiation dosage exposure in the vet DR industry
- Ultra-high speed exposure and processing, 1-3 seconds
- High-frequency inverter, high-voltage generator and high-voltage output
- Compact four-way floating bed design can meet various image requirements from different body parts and positions
- Semi-closed cover design for a better heat dissipation and nice appearance;
- Video camera at machine head for remote patient monitoring
- Advanced flat panel detector technology
- The first portable tablet box design
- Aluminum alloy column opening mold process
- Multi-angle shooting, a wide range of clinical applications
- Diversified configuration to meet the needs of hospitals at all level
- Professional measuring tools (VHS, TTA, HD, TPLO) Advanced image splicing tools designed for veterinary use.
- Independently designed and owned “TUTOM Vet-DR Workstation” is a professional veterinary imaging processing software that equipped with the exclusive “MFOPA” advanced algorithm processing system to ensure the highly efficient image post-processing capabilities.
- Compact structural design and integrated rack and generator design for less room space occupation;
Configuration and Warranty
| No | Parts | Parameter | Performance requirement | Configuration | Warranty |
| 1 | Generator SONTU50-MHG |
Power | 20/32kW | Stand | 2 Years |
| Supply voltage | Single 220V | ||||
| Power type | L N,3wires | ||||
| Power Frequency | 50/60Hz | ||||
| Instantaneous Power | 54kW | ||||
| Exposure voltage | 40kV-150kV | ||||
| Exposure time | 1ms-6300ms | ||||
| Exposure current | 10mA-400mA | ||||
| Kv veracity | ≤5% | ||||
| mA veracity | ≤5%（mA＞25mA,ms＞5） | ||||
| ≤±（10%+1mA） (mA≤25) | |||||
| ≤±20%（ms≤5ms） | |||||
| Exact exposure time | ≤±（10%+1ms） (ms≤10) | ||||
| ≤±（5%+0.2ms）（ms＞10） | |||||
| mAs Veracity | ≤±(10%+0.2mA·s) | ||||
| mAs Range | 0.1mAs-320mAs | ||||
| Inverter frequency | 50kHz±20% | ||||
| 2 | X Ray Tube Toshiba E7239X |
Focus | 0.6mm/ 1.5mm | Stand | 2 Years |
| Anode rotation speed | 2700rpm | ||||
| Anode capacity | 142KJ(200kHU) | ||||
| Anode input power | 16.5/47KW | ||||
| Standard voltage | 40~125KV | ||||
| Assemnlies capacity | 900KJ(1250kHU) | ||||
| Target angle | 14° | ||||
| Continuous heat | Fanless 180W (15kHU/min) | ||||
| dissipation | |||||
| Loading leak condition | 125 kV、 4 mA | ||||
| Permanent filter | 0.9 mm Al / 75 kV IEC60522:1999 | ||||
| Weight | ≈16kg | ||||
| 3 | Flat Panel SONTU |
Materials | A-Si， CsI， non-splicing | Stand | 3 Years |
| Dimension | 43cm*43cm | ||||
| Available resolution | 3072*3072 | ||||
| Spatial pixel | 3.4 Lp/mm | ||||
| Pixel dimension | 139μm | ||||
| Image acquisition time | Preview time： 4s | ||||
| Processing acquisition time： 7s (Inclpreview image time ) | |||||
| 4 | Colimator INNOVA C20 |
Original filtration | 1.2mmAl | Stand | 2 Years |
| Power supply | DC/AC 12V or 24V | ||||
| Location light | LED， 5W | ||||
| Field switch | Manul | ||||
| Exposure time | 30s | ||||
| Min exposure field | >45cm×45cm SID=100cm | ||||
| Max exposure field | ≤0cmX0cm SID=100cm | ||||
| illuminance | >300Lux | ||||
| leakage radiation | < 0.5 mGy/h | ||||
| 5 | Host DELL OptiPlex 5050 |
RAM | 4G | Stand | 2 Years |
| CPU | I3 | ||||
| Hardware | 500G | ||||
| 6 | Display DELL SP2318H |
Dimension | 23 inches | Stand | 2 Years |
| Panel type | IPS | ||||
| Screen ratio | 16:09 | ||||
| Pixel pitch | 0.265mm | ||||
| Brightness | 250cd/m2 | ||||
| Resolution | 1920×1080 | ||||
| Typical Contrast | 1000:01:00 | ||||
| Response time | 6ms | ||||
| Weight | 5.59kg | ||||
| 7 | Complete equipment | SID | 1m | Stand | 3 Years |
| Bed surface material | Polyurethane | ||||
| Dimension | 1400*650mm | ||||
| Complete dimension | 1439*847*1924mm | ||||
| (Length*Width*Height) | |||||
| Bed height | 766mm | ||||
| Max dimension inside | 800*550*52mm | ||||
| (Length*Width*Height) | |||||
| Bed movement | Four way floating ， | ||||
| Lateral ±220mm， | |||||
| Vertical ±50mm | |||||
| Support Weight | ≥150KG | ||||
| Wireless exposure | Beside control | Optional | |||
| Mini control console+ remote-control | |||||
| Brown | Standard configuration | Stand | |||
| Green | Optional | Optional | |||
| Beside monitor | Real-time monitoring system | ||||
| Voice talkback | Connection inside and outside room. | ||||
| 8 | Software | Imaging Processing | Vision adjustment | Stand | Continue Update |
| Zoom roaming | |||||
| Gamma calibration | |||||
| Flip / Reversal | |||||
| Measurement and annotation | |||||
| Exposure dose display | |||||
| Data interface and transmit | DICOM transmit | ||||
| DICOM Store | |||||
| DICOM Print | |||||
| DICOM Worklist | |||||
| DICOMMPPS | |||||
| APR | 52 | ||||
| Harware storage | 500G | ||||
| Advanced functions | Full imaging Splicing | Optional | |||
| Full imaging Printing |
