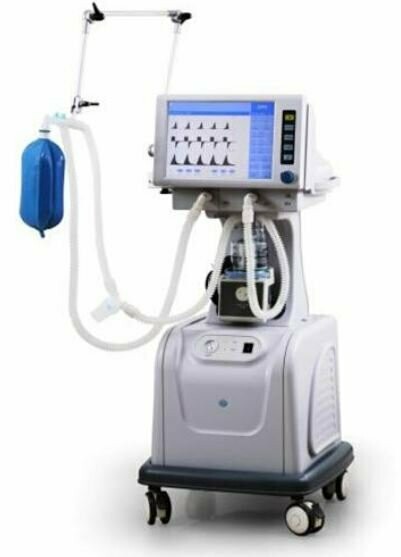

UT-3010A 15" Touch Screen Mobile Veterinary Ventilator
Main Feature:
- Removable 15 inch large touch screen, hang-up type that allows the operator to hang the screen pad wherever requires
- Easy to operate
- Thinner screen pad with easy handle
- Day and night mode change
- Support INVASIVE and NON-INVASIVE ventilation mode
- Assistant Nebulization treatment/O2 therapy
- Multi-mode ventilation function (IPPV, SIGH, SIPPV(A/C), SIMV, MANUAL, CPAP, SIMV+PSV, SIMV+PCV,PCV, ARPV, BIPAP, NIV/NIPPV)
- Intelligent operating system
- Air compressor support (optional)
- Automatic alarm setting adjusting.
- Flow (optional) and pressure trigger.
- Humidifier with temperature adjustment.
- Professional separate non-invasive module, support leakage compensation.
- Self testing and calibration with faulty code display
- Pressure Control
- Volume Control
- Spontaneous .
- Sigh and Manual Breaths
- FiO2 0.21 to 1.0
- Flow 1 to 100 lpm
- Inspiratory Time 0.1 to 3.0 sec.
- Tidal Volume 10 ml to 2000 ml.
- Inspiratory Pause 0, 10, 20 and 30% of I.T
- Respiratory Rate 1 to 100 bpm.
- Pressure Control 0 to 75 cm H2O
- Pressure Support 0 to 60 cm H2O
- PEEP/CPAP 0 to 45 cm H2O
- Bias Flow 0 to 30 lpm.
- Sensitivity/ Trigger 0 to –5 cm H2O
- Maximum Inverse I:E 3:1
- Pneumatic Pressure Relief 0 to 120 cm H2O
- SIGH 1.5 x Insp. Time Operator Controlled (volume or Pressure Breath)
- Inspiratory Tidal Volume
- Set Tidal Volume
- Inspiratory Minute Volume
- Respiratory Rate (total)
- Peak airway pressure (PIP), Mean airway pressure (MAP) and Baseline Pressure (PEEP/CPAP)
- Inspiratory Peak Flow
9. has the facility for non-invasive positive pressure ventilation and mask ventilation.
10. has a backlit digital manometer for the monitoring of airway pressures proximally
11. has a built in Nebulizer to enable the delivery of medication without dis-intubating.
12. has the following Audio-Visual Alarms:
- High and Low pressure
- High and Low Minute Volume
- I.T too long (d) Ventilator inoperative
- Gas supply source failure
- Power Failure
- Power Down
- Proximal Line Disconnect
14. The ventilator has the facility for independent lung ventilation.
15. has auto zero function.
16. The ventilator supplied with a standalone air compressor, fisher and paykel humidifier with chamber and one set breathing circuit.
Technical Specifications
| Physical specifications |
|
| Dimensions |
45*55*140mm |
| Weight |
65kg |
| Casters |
central brake with lock |
| Screen |
removable, hang-up type |
| Display |
colour LCD, 15 inch with day/night mode |
| Display graphics |
Waveforms of pressure time, flow time, volume time |
| Loops |
pressure-volume, flow-volume, flow-pressure, volume, EtCO2 |
| Screen control |
touch screen |
| Air compressor specifications |
|
| Power |
AC 220V±10%, 50Hz±2% |
| Noise |
≤50dB |
| Output |
60 lpm @ 34 psi |
| Out let pressure |
0.4±0.15Mpa |
| Dew point depression |
3 ˚C below room temperature |
| Out lets |
One grounded DISS air out let with check valves |
| Cut off pressure |
37 ± 0.5 psi |
| Cut in pressure |
34.5 ± 0.5 psi |
| Ventilator specifications |
|
| Ventilation modes |
IPPV, SIGH, SIPPV(A/C), SIMV, MANUAL, CPAP, SIMV+PSV, SIMV+PCV, PCV, ARPV, BIPAP, NIV/NIPPV |
| Tidal volume range |
10-2000mL |
| Pressure range |
5-80 mbar |
| Rispiration rate range |
1-100bpm(1-40bpm under SIMV) |
| I:E Range |
4:1-1:8 |
| Ptrigger range |
-20-20cmH2O |
| Apnea Ti Range |
0-6s |
| PEEP type |
Integrated, Electronic control, 0-30cm H2O |
| Alarm limits |
|
| Pipeline supply |
Gas configuration: O2, Air |
| Battery power |
lead-acid 12V, 4Ah, 120 mins+ |
| Language |
English/Chinese |
| Calibration |
touch pad/flow rate/pressure/FiO2 |
| Patient therapy type |
invasive, non invasive |
| Assistant therapy |
Nebulization treatment/O2 therapy |
| Extended functions |
|
| CO2 Module |
Monitoring range: 0 – 99 mmHg, Alarm range: 1 – 99mmHg |
| SPO2 Module |
SpO2 range: 0 – 100%, Pulse rate range: 30 – 250 bpm, SpO2 alarm range: 80% - 100% |
