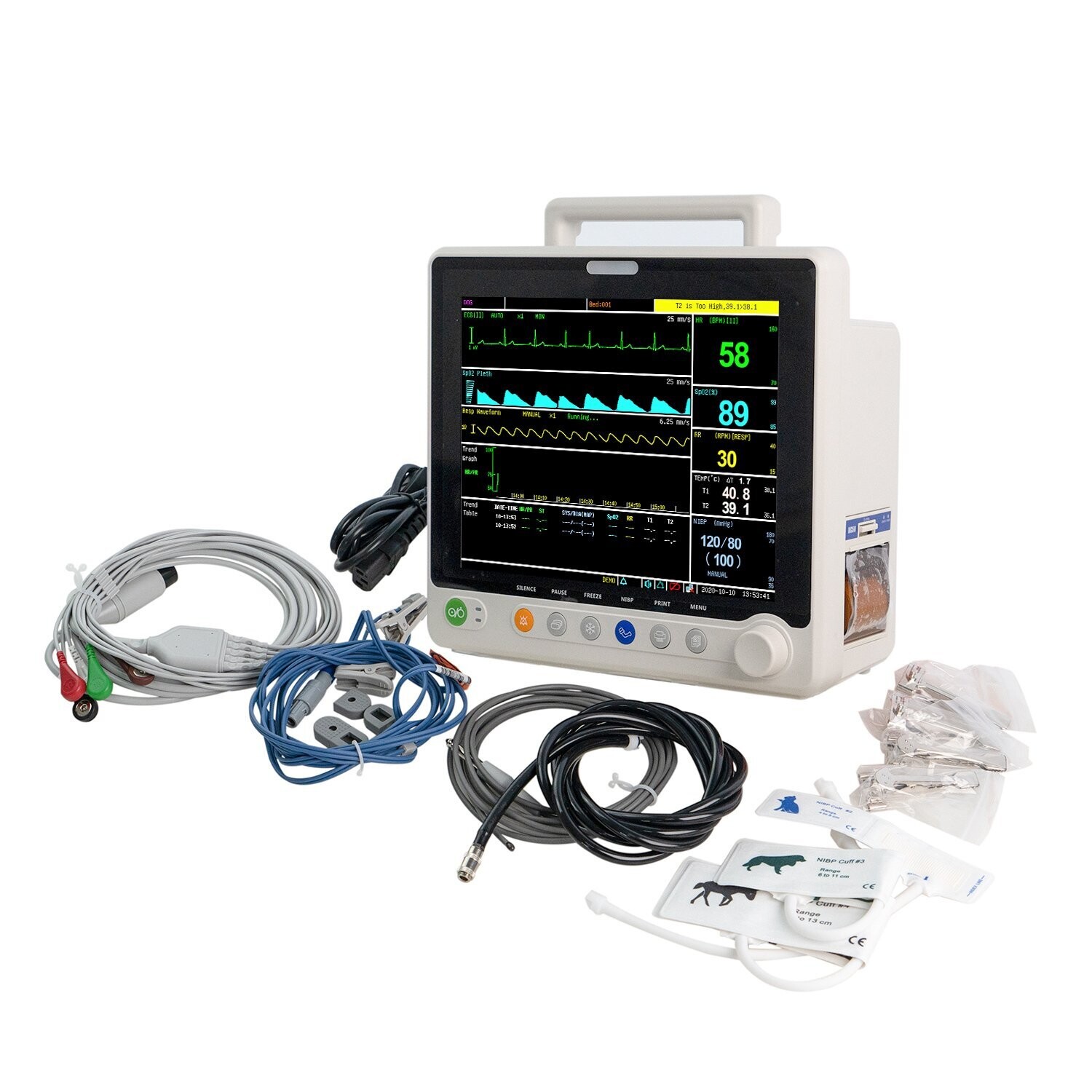

The UTM02V is a multi-parameter veterinary monitor with 12.1 inches high resolution LCD display. It is intended to be used in veterinary clinics and hospitals to measure animals’ SpO2, Pulse rate, Non-invasive blood pressure, Temperature, 5-lead/3-lead electrocardiography (ECG) and Respiration rate. It has two optional parameters capnography (ETCO2) and Invasive blood pressure (IBP).
Main Features
12.1' coloured and bright, high definition (800 x 600) TFT LCD screen;
Parameters: SpO2, ECG, Heart Rate,NIBP, TEMP*2,RESP (Optional: ETCO2 and 2*IBP);
Suitable for cat, dog, horse and other animals ;
72 hours graphic and tabular trends of all parameters;
32 seconds full-disclosure waveform review ;
500 NIBP and SpO2 measurement data can be stored and recalled;
Built-in large capacity( 4400mAh ) rechargeable Lithium battery(Optional Double Batteries, Up to 8800mAh,Support for up to more 10 hours of work time);
Equipped with internal printer, Support for 3 channel waveform print ;
100MBase-T Ethernet Interface, Support to connect to IPMS8000 Patient Management System;
Special designed SpO2 technology with adjustable emitting light and a wide range measurement for veterinary
Special designed ECG technology with high input impedance to suit for different size of veterinaries
Special designed NIBP technology with different size of NIBP cuffs for veterinaries
Sidestream technology accommodates intubated and non-intubated animals
Unique Designed LOGO for veterinary use only
Equipped with accessory box, convenient to carry and save your space
The recorder supports the print of 3 channels wave form at the same time
Ergonomically designed handle to fit your hand comfortably.
Freeze alarm events, easy to capture alarm information.
Can link with IPMS8000 intelligent patient monitor system
