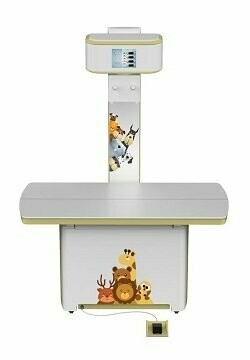

VET-1800L Veterinary Digital Radiography X-ray

Features:

1. Adopts high frequency inverter technology, X-ray quality is fine, stable and reliable, image is clear with good contrast.
2. Adopts kV and mAs closed-up controlling technology, micro computer real-time control, assures dose accuracy and high repeatability.
3. Use kV and mAs to adjust radiography parameters, true color display, overvoltage, overcurrent, output overload and overheating protection.
4. Preset multiple radiography programs, users can revise and save by themselves.
5. High quality monoblock X-ray generator greatly reduces X-ray radiation and protects environment and operators.
6. Automatic failure protection device and failure alarm display.
7. System automatically saves parameters when powered off.
8. Manually and remotely control radiography functions.
9. Support barcode scanner to process patient’s information input.
10. Equipped with vet image acquisition software.
11. Professional operation procedure, support DICOM 3.0 standard, precise image processing; support report output.

Application

VET1800 is a digital high frequency X-ray radiography system for veterinary use. It can be used in pet hospital radiology room, pet clinic and etc., satisfies radiography requirements of animals of different body types.

Technical Specifications:

• Exposure method: wire control/remote control;
• X-ray tube: Toshiba E7884X
• Power Condition: 380V/220V

Digital Imaging System

1. Flat panel detector: CareView 1800L
2. Pixel pitch: 154um
3. Valid size: 17” x 17”
4. Resolution: 3.6lp/mm
5. A/D conversion: 16 bits
6. Detector type: A-si
7. Pixel matrix: 2816 x 2816

Mechanism Parameters

1. Table length: 1500mm
2. Table width: 650mm
3. Table height: 800mm
4. Table transverse movement: 480mm
5. SID: 1000mm

Warranty: 14 Months
