Veterinary Smart Chemistry Analyzer Reagent Tray
- Little Sample Volume Required
Sample volume is only 1/10-1/20 of traditional chemistry analyzer
EASY 3-STEPS OPERATION
All steps are designed automatically from centrifugation, dilution, quality control to test result printing
1. Insert Sample (100ul blood) 2. Insert Rotor (12 minutes running)
Support full blood sample, internal Free of maintenance, easy to use in
centrifuge, no sample pretreatment, mobile space and field. Key parts
only 100ul full blood, serum or American original import, internal no-
plasma can complete the test liquid road, pump valve and other vulnerable parts
3. Read Result (immediately)
Using the principle of photoelectric colorimetric, no random error, no cross infection. The instrument quality control, calibration automatic real-time completion

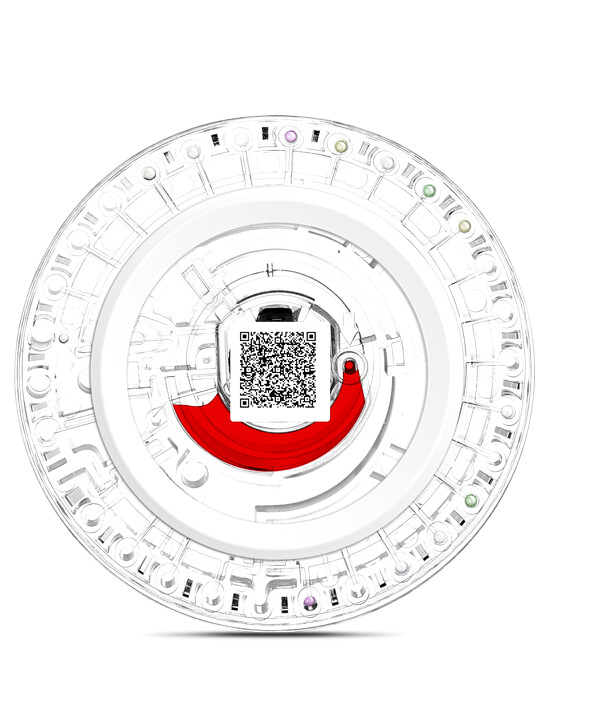

DISPOSABLE REAGENT DISC
9 Veterinary Chemistry Profiles with 26 Parameters in One Solution. It is freeze-drying single-use plastic reagent disc panel with one year lifespan at the temperature of 2-8℃. The diluent contains in the rotor. The QR code not only includes the basic information of rotor, but has the functions to update system of
analyzer and to set zone code
Specification
VETERINARY ROTOR PROFILE
| Reagent Disc | Description |
| General Chemistry | TC / ALT / AMY /ALB / ALP / GLU / GGT / UA /AST / TBIL /UREA / CREA / TG / TP / GLOB* / U/C* / A/G* |
| Health Check | Ca / PHOS / Crea / TG / TB / ALT / AST / CK / AMY / GLOB* / U/C* / A/G* |
| Liver Function | ALT / TBA / AMY /ALB / ALP / GGT / AST / TBIL / CHE / TP / GLOB* / A/G* |
| Renal Function | Ca / PHOS / tCO2 / Crea / UA / UREA / ALB / GLU / U/C* |
| Electrolyte | K+ / Na+ / Cl- / Mg / Ca / PHOS / tCO2 |
| Lipid | GLU / TC / TG / HDL / ALT / AST / LDL* |
| Cardiac | AST / CK / LDH / HBDH |
| Liver Function Plus | ALB / TP / ALP / GGT / TB / DB / ALT / AST / AMY / LPS / GLOB* / A/G* |
| Renal Function Plus | K+ / Na+ / Cl- / Ca / Crea / UA / UREA / ALB / U/C* |
| ReLyte | K+ / Na+ / Cl- / tCO2 / Crea / UREA / GLU |
| Chemistry CRP | Crea / UREA / ALB / TP / GLU / ALP / TB /DB / ALT /AST / CRP |
| Glycolipid | UA / GLU / TC / TG / CK / LAC |
| CRP | Crea / UREA /AMY /LPS / CRP |
| General Chemistry II | K+ / Na+ / Cl / Mg / Ca / PHOS / tCO2 / Crea / UA /UREA / ALB / GLU / AST / CK / LDH / HBDH / AMY / LPS / U/C* |
| General Chemistry III | Crea / UA /UREA / ALB / TP / GLU / TC / TG / HDL / ALP / GGT / TB/ DB /CHE / TBA / ALT / AST / CK / AMY / GLOB / U/C* / A/G* / LDL* |
Analytes and Clinical Significance
| Analytes | Organ | Clinical Signs |
| ALB (Albumin) | Liver | Liver secretion, liver disease, kidney disease, dehydration, gastrointestinal diseases or parasites |
| A/G* (ALB/GLOB) | Liver | Low A/G may caused by renal dysfunction, amyloidosis, inflammation, infection, gastrointestinal disease, immune-induced liver failure or malabsorption |
| ALP (Alkaline Phosphatase) | Liver | Liver disease |
| LDH (Lactate Dehydrogenase) | Liver | Liver diseases, especially in birds and reptiles |
| TBA (Bile Acids) | Liver | Chronic liver disease |
| AST (Aspartate Aminotransferase) | Liver | Liver or muscle disease |
| ALT (Alanine Aminotransferase) | Liver | Liver disease or liver disorder |
| CHE (Cholinesterase) | Liver | Decreased activity is an indicator of liver disorder |
| TB (Total Bilirubin) | Liver and Gallbladder | Anemia or bile duct disease |
| GGT (Gamma-GT) | Liver and kidney | Liver disorder |
| TC (Cholesterol) | Liver and kidney | Liver disease, kidney disease or endocrine abnormalities |
| CREA (Creatinine) | Kidney | Muscle metabolites, kidney disease or urethral obstruction |
| BUN (Blood Urea Nitrogen) | Kidney | Kidney disease, and sometimes other reasons, such as diet, liver disease or dehydration can also cause abnormal |
| PHOS (Phosphorus) | Kidney | Increased phosphorus level are indicators of kidney disease, especially in advanced nephropathy |
| UA (Uric Acid) | Kidney | Kidney disease, especially in birds and reptiles |
| Mg (Magnesium) | Kidney | Disorder of adrenal glands or renal |
| AMY (Amylase) | Pancreas | Pancreatic disease |
| P-AMY (Pancreas-Amylase) | Pancreas | Pancreatic disease |
| LIPA (Lipase) | Pancreas | Pancreatic disease |
| CK (Creatine Kinase) | Muscle | Muscle injury or neurological disease |
| TG (Triglycerides) | Pancreas/Systemic | Indicator of fat content in blood |
| GLU (Glucose) | Systemic | Physical condition of pets is poor or sick, such as diabetes may cause abnormal |
| TP (Total Protein) | Systemic | Kidney disease, dehydration or gastrointestinal diseases |
| GLOB* (TP-ALB) | Systemic | Chronic inflammatory disease including filariasis, virus, parasite or bacterial infection |
| Ca (Calcium) | Systemic | A variety of diseases, such as lactation, malnutrition, cancer etc. |
| Na (Sodium) | Systemic | Maintain the body osmotic pressure and acid-base balance and transmission nerve impulses |
| tCO2 (Bicarbonate) | Systemic | Primary metabolic alkalosis and acidosis, primary respiratory alkalosis and acidosis |
| Cl (Chlorine) | Systemic | Mainly in the extracellular fluid, to maintain cell integrity by osmotic pressure |
| K (Potassium) | Systemic | Provide the most important buffer environment for cells and help maintain acid-base balance and osmotic pressure |
