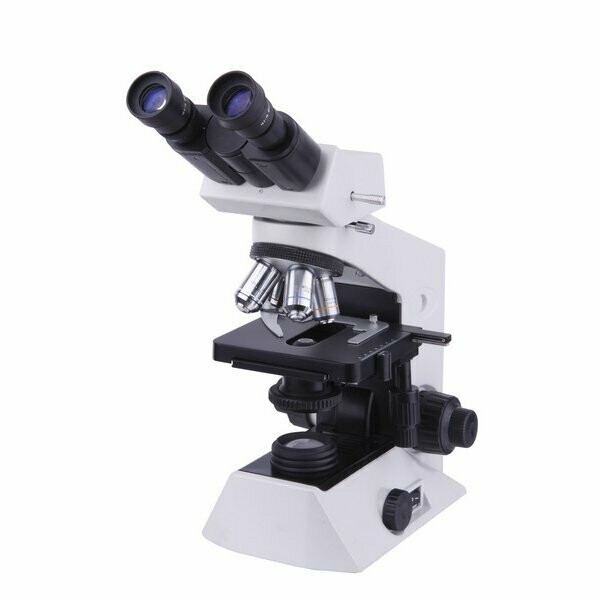

XSZ-2108 Biological Microscope

XSZ-2108 Biological Microscope

Store / Veterinary / Diagnostics
AU$899.00
In stock
Product Details
Optical System
UIS(Universal optical system)
Illumination
Epi-kohler illumination 6V 20W
Halogen lamp 100-240V 50/60Hz
Focusing
 Stage height adjustment mechanism
Fine adjustment Scale: 0.001mm per turnCoaxial Coarse range 14mm
Nosepiece
Quadruple
Viewing Head
Binocular Head, inclined at 30°
Interpupillary distance 48-75mm
Stage
Size: 140x140mm,
moving range: 75x45mm
Condenser NA=1.25
 Abbe Condenser, NA=1.25(when immersed in oil)
Objectives
Plan-achromatic
4*N.A.0.10W.D.18.5mm
10*N.A.0.25W.D.10.5mm

40*N.A.0.65W.D.0.56mm

100*N.A.1.25W.D.0.13mm


Objectives

Magnification Numerical Aperture Working Distance Remark
4X 0.10 37.5
10X 0.25 7.316
40X 0.65 0.632 spring
100X(oil) 1.25 0.198 spring

Eyepieces

Magnification Diameter of view-field (mm)
WF10X D18
WF16X ≥D12

Total Magnification

4X 10X 40X 100X
10X 40X 100X 400X 1000X
16X 64X 160X 640X 1600X

Mechanical Tube Length: 160mm

Object to Primary Image Distance: 195mm

Standard Package

Mainframe of bio-microscope 1 set

Eyepiece WF10X, WF16X 2 pcs of each

Objectives: 4X, 10X, 40X(S), 100X(S, oil) 1 pcs

6V 20W Spare Halogen lamp 2 pcs

BGX1-20 (0.5A) Fuse 3 pcs

Filter: Green, Light Blue 1 pcs of each

Cedarwood oil 1 bottle

Dust cover 1 pcs

Desiccant 1 packet
